Another month goes by, which means it’s time for another release!
ClickHouse version 24.12 contains 16 new features 🦃 16 performance optimizations ⛸️ 36 bug fixes 🏕️
In this release, we have Enum usability improvements, Iceberg REST catalog and schema evolution support, reverse table ordering, the ability to use JSON subcolumns as a primary key, automatic JOIN reordering and more!
New Contributors
As always, we send a special welcome to all the new contributors in 24.12! ClickHouse's popularity is, in large part, due to the efforts of the community that contributes. Seeing that community grow is always humbling.
Below are the names of the new contributors:
Emmanuel Dias, Xavier Leune, Zawa_ll, Zaynulla, erickurbanov, jotosoares, zhangwanyun1, zwy991114, “JiaQi
Hint: if you’re curious how we generate this list… here.
You can also view the slides from the presentation.
Enum usability improvements
Contributed by ZhangLiStar
This release also sees usability improvements when working with Enums. We’re going to explore them with help from the Reddit comments dataset. We’ll create a table with just a couple of the columns:
1CREATE TABLE reddit
2 (
3 subreddit LowCardinality(String),
4 subreddit_type Enum(
5 'public' = 1, 'restricted' = 2, 'user' = 3,
6 'archived' = 4, 'gold_restricted' = 5, 'private' = 6
7 ),
8 )
9 ENGINE = MergeTree
10 ORDER BY (subreddit);
We can insert the data like this:
1INSERT INTO reddit 2SELECT subreddit, subreddit_type 3FROM s3( 4 'https://clickhouse-public-datasets.s3.eu-central-1.amazonaws.com/reddit/original/RC_2017-12.xz', 5 'JSONEachRow' 6);
Let’s say we want to count the number of posts by subreddit_type where the type contains the string e. We can write the following query using the LIKE operator:
1SELECT 2 subreddit_type, 3 count() AS c 4FROM reddit 5WHERE subreddit_type LIKE '%restricted%' 6GROUP BY ALL 7ORDER BY c DESC;
If we run this query before 24.12, we’ll see an error message like this:
Received exception:
Code: 43. DB::Exception: Illegal type Enum8('public' = 1, 'restricted' = 2, 'user' = 3, 'archived' = 4, 'gold_restricted' = 5, 'private' = 6) of argument of function like: In scope SELECT subreddit, count() AS c FROM reddit WHERE subreddit_type LIKE '%e%' GROUP BY subreddit ORDER BY c DESC LIMIT 20. (ILLEGAL_TYPE_OF_ARGUMENT)
If we run it in 24.12, we’ll get the following result:
┌─subreddit_type─┬──────c─┐
1. │ restricted │ 698263 │
2. │ user │ 39640 │
└────────────────┴────────┘
The equality and IN operators also now accept unknown values. For example, the following query returns any records that have a type of Foo or public:
SELECT count() AS c
FROM reddit
WHERE subreddit_type IN ('Foo', 'public')
GROUP BY ALL;
If we run this query before 24.12, we’ll see an error message like this:
Received exception:
Code: 691. DB::Exception: Unknown element 'Foo' for enum: while converting 'Foo' to Enum8('public' = 1, 'restricted' = 2, 'user' = 3, 'archived' = 4, 'gold_restricted' = 5, 'private' = 6). (UNKNOWN_ELEMENT_OF_ENUM)
If we run it in 24.12, we’ll get the following result:
┌────────c─┐
1. │ 85235907 │ -- 85.24 million
└──────────┘
Reverse table ordering
Contributed by Amos Bird
This release added a new MergeTree setting, allow_experimental_reverse_key, which enables support for descending sort order in MergeTree sorting keys. You can see an example of usage below:
ENGINE = MergeTree
ORDER BY (time DESC, key)
SETTINGS allow_experimental_reverse_key=1;
This table will sort the time field in descending order.
The ability to sort data like this is handy for time series analysis, especially Top N queries.
JSON subcolumns as table primary key
Contributed by Pavel Kruglov

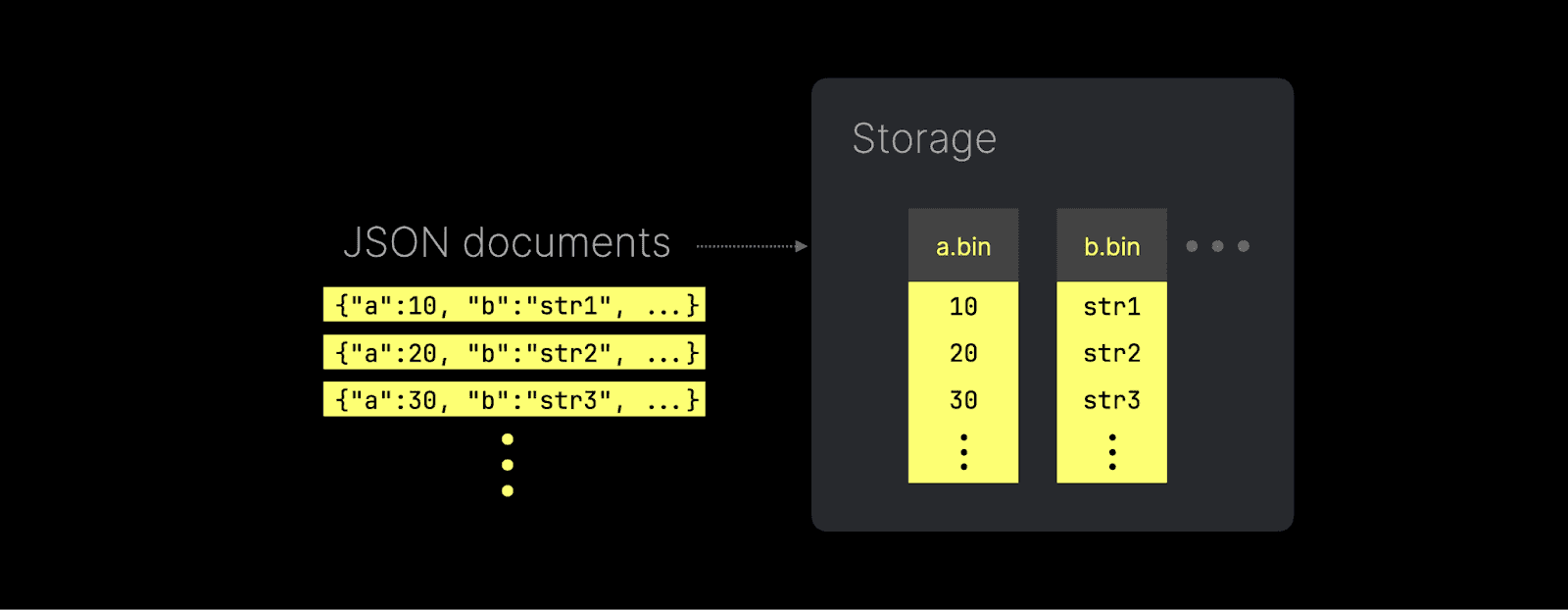

As a reminder, ClickHouse’s new powerful JSON implementation stores the values of each unique JSON path in a true columnar fashion:
The diagram above sketches how ClickHouse stores (and reads) any inserted JSON key path as a native subcolumn, allowing high data compression and maintaining query performance seen on classic types.
This release now supports using JSON subcolumns as a table’s primary key columns:
CREATE TABLE T
(
data JSON()
)
ORDER BY (data.a, data.b);

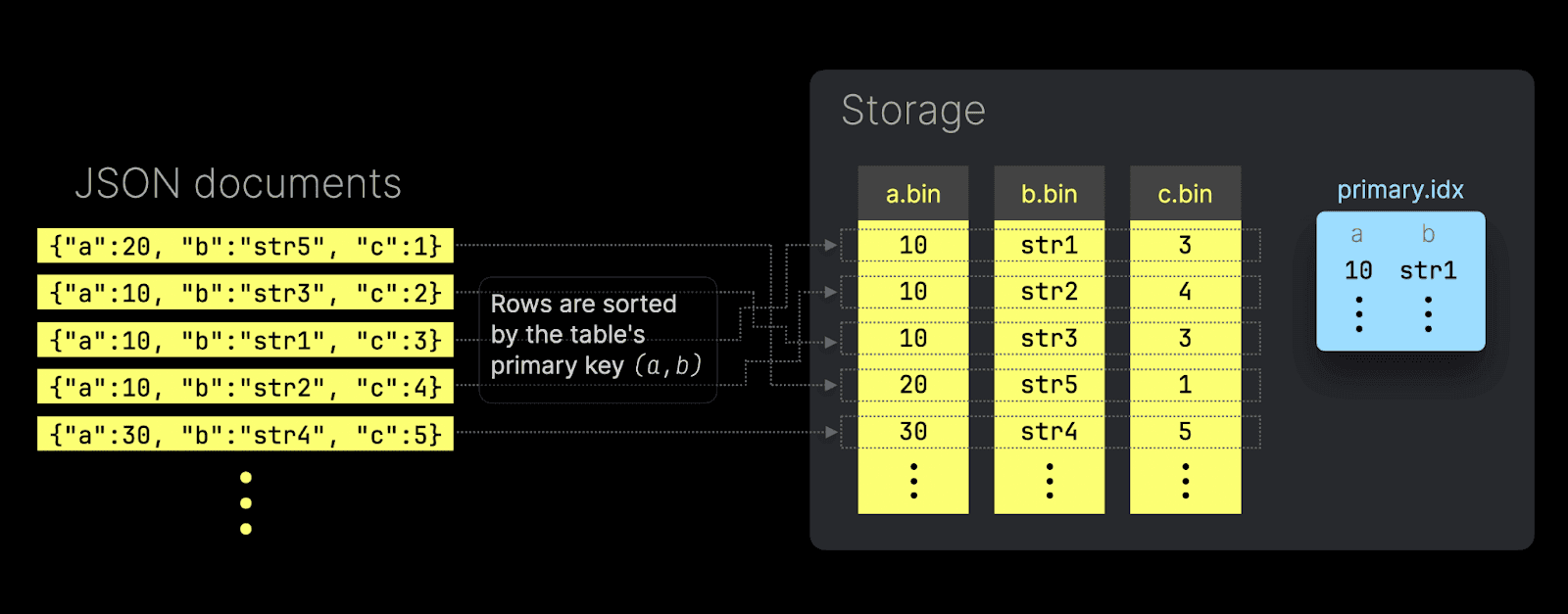

This means that ingested JSON documents are (per table part) stored on disk ordered by the JSON subcolumns that are used as primary key columns. Additionally, ClickHouse will create a primary index file for automatically speeding up queries that filter on primary key columns:
Furthermore, using JSON subcolumns as primary key columns enables optimal compression ratios for the subcolumns' *.bin data files, provided the primary key columns are arranged in ascending order of cardinality.
Let’s look at a more concrete example.
We use an AWS EC2 m6i.8xlarge instance as a test machine with 32 vCPUs and 128 GiB of main memory and the Bluesky dataset as a test dataset.
We loaded the 100 million Bluesky events (one JSON document per event) into two ClickHouse tables.
This is the first table that doesn’t use any JSON subcolumns as primary key columns:
CREATE TABLE bluesky_100m_raw
(
data JSON()
)
ORDER BY ();
The second table uses some JSON subcolumns as primary key columns (plus optionally some type hints for these columns to get rid of some type-casts in queries):
1CREATE TABLE bluesky_100m_primary_key 2( 3 data JSON( 4 kind LowCardinality(String), 5 commit.operation LowCardinality(String), 6 commit.collection LowCardinality(String), 7 time_us UInt64 8 ) 9) 10ORDER BY ( 11 data.kind, 12 data.commit.operation, 13 data.commit.collection, 14 fromUnixTimestamp64Micro(data.time_us) 15);
Both tables contain the same 100 million JSON docs.
Now we run a query (“When do people block people on BlueSky” - adapted from the "When do people use BlueSky?” query that you can run on the ClickHouse SQL playground) on the table without a primary key:
1SELECT
2 toHour(fromUnixTimestamp64Micro(data.time_us::UInt64)) AS hour_of_day,
3 count() AS block_events
4FROM bluesky_100m_raw
5WHERE (data.kind = 'commit')
6AND (data.commit.operation = 'create')
7AND (data.commit.collection = 'app.bsky.graph.block')
8GROUP BY hour_of_day
9ORDER BY hour_of_day ASC;
┌─hour_of_day─┬─block_events─┐
1. │ 0 │ 89395 │
2. │ 1 │ 143542 │
3. │ 2 │ 154424 │
4. │ 3 │ 162894 │
5. │ 4 │ 65893 │
6. │ 5 │ 39556 │
7. │ 6 │ 34359 │
8. │ 7 │ 35230 │
9. │ 8 │ 30812 │
10. │ 9 │ 35620 │
11. │ 10 │ 31094 │
12. │ 16 │ 33359 │
13. │ 17 │ 65555 │
14. │ 18 │ 65135 │
15. │ 19 │ 65775 │
16. │ 20 │ 70096 │
17. │ 21 │ 65640 │
18. │ 22 │ 75840 │
19. │ 23 │ 143024 │
└─────────────┴──────────────┘
19 rows in set. Elapsed: 0.607 sec. Processed 100.00 million rows, 10.21 GB (164.83 million rows/s., 16.83 GB/s.)
Peak memory usage: 337.52 MiB.
Let’s run the same query on the table with a primary key (note that the query filters on a prefix of the primary key columns):
1SELECT
2 toHour(fromUnixTimestamp64Micro(data.time_us)) AS hour_of_day,
3 count() AS block_events
4FROM bluesky_100m_primary_key
5WHERE (data.kind = 'commit')
6AND (data.commit.operation = 'create')
7AND (data.commit.collection = 'app.bsky.graph.block')
8GROUP BY hour_of_day
9ORDER BY hour_of_day ASC;
┌─hour_of_day─┬─block_events─┐
1. │ 0 │ 89395 │
2. │ 1 │ 143542 │
3. │ 2 │ 154424 │
4. │ 3 │ 162894 │
5. │ 4 │ 65893 │
6. │ 5 │ 39556 │
7. │ 6 │ 34359 │
8. │ 7 │ 35230 │
9. │ 8 │ 30812 │
10. │ 9 │ 35620 │
11. │ 10 │ 31094 │
12. │ 16 │ 33359 │
13. │ 17 │ 65555 │
14. │ 18 │ 65135 │
15. │ 19 │ 65775 │
16. │ 20 │ 70096 │
17. │ 21 │ 65640 │
18. │ 22 │ 75840 │
19. │ 23 │ 143024 │
└─────────────┴──────────────┘
19 rows in set. Elapsed: 0.011 sec. Processed 1.47 million rows, 16.16 MB (129.69 million rows/s., 1.43 GB/s.)
Peak memory usage: 2.18 MiB.
Boom: The query runs 50 times faster and uses 150 times less memory.
Iceberg REST catalog and schema evolution support
Contributed by Daniil Ivanik and Kseniia Sumarokova
This release introduces support for querying Apache Iceberg REST catalogs. At the moment, the Unity and Polaris catalogs are supported. We first create a table using the Iceberg table engine:
CREATE TABLE unity_demo
ENGINE = Iceberg('https://dbc-55555555-5555.cloud.databricks.com/api/2.1/unity-catalog/iceberg')
SETTINGS
catalog_type = 'rest',
catalog_credential = 'aaaaaaaa-bbbb-cccc-dddd-eeeeeeeeeeee:...',
warehouse = 'unity',
oauth_server_uri = 'https://dbc-55555555-5555.cloud.databricks.com/oidc/v1/token',
auth_scope = 'all-apis,sql';
Then, we can query the data in the catalog’s underlying table:
SHOW TABLES FROM unity_demo;
SELECT * unity_demo."webinar.test";
The Iceberg table function supports schema evolution, including columns added or removed over time, renamed columns, and data types changed between primitive types.
Parallel hash join by default in action
Contributed by Nikita Taranov
Every ClickHouse release brings JOIN improvements, and since this is our special Christmas release, it’s loaded with a sleigh full of JOIN enhancements! ✨
In the 24.11 release post, we briefly mentioned that the parallel hash join is now ClickHouse's default join strategy. In this post, we will demonstrate the performance improvements of this change with a concrete example.
We use an AWS EC2 m6i.8xlarge instance with 32 vCPUs and 128 GiB of main memory as a test machine.
We use the TPC-H dataset with a scaling factor of 100 as a test dataset for table joins, which means that the overall amount of data stored in all tables is 100 GB.
We created and loaded the 8 tables (modeling a wholesale supplier's data warehouse) by following the instructions in the docs.
Now we run query 3 from the set of standard TPC-H benchmark queries with the previous default join strategy of ClickHouse - the hash join:
1SELECT
2 l_orderkey,
3 sum(l_extendedprice * (1 - l_discount)) AS revenue,
4 o_orderdate,
5 o_shippriority
6FROM
7 customer,
8 orders,
9 lineitem
10WHERE
11 c_mktsegment = 'BUILDING'
12 AND c_custkey = o_custkey
13 AND l_orderkey = o_orderkey
14 AND o_orderdate < DATE '1995-03-15'
15 AND l_shipdate > DATE '1995-03-15'
16GROUP BY
17 l_orderkey,
18 o_orderdate,
19 o_shippriority
20ORDER BY
21 revenue DESC,
22 o_orderdate
23FORMAT Null
24SETTINGS join_algorithm='hash';
0 rows in set. Elapsed: 38.305 sec. Processed 765.04 million rows, 15.03 GB (19.97 million rows/s., 392.40 MB/s.)
Peak memory usage: 25.42 GiB.
Next, we run the same query with the new default join strategy of ClickHouse - the parallel hash join:
1SELECT
2 l_orderkey,
3 sum(l_extendedprice * (1 - l_discount)) AS revenue,
4 o_orderdate,
5 o_shippriority
6FROM
7 customer,
8 orders,
9 lineitem
10WHERE
11 c_mktsegment = 'BUILDING'
12 AND c_custkey = o_custkey
13 AND l_orderkey = o_orderkey
14 AND o_orderdate < DATE '1995-03-15'
15 AND l_shipdate > DATE '1995-03-15'
16GROUP BY
17 l_orderkey,
18 o_orderdate,
19 o_shippriority
20ORDER BY
21 revenue DESC,
22 o_orderdate
23FORMAT Null
24SETTINGS join_algorithm='default';
0 rows in set. Elapsed: 5.099 sec. Processed 765.04 million rows, 15.03 GB (150.04 million rows/s., 2.95 GB/s.)
Peak memory usage: 29.65 GiB.
The query runs ~8 times faster with the parallel hash join.
Automatic JOIN reordering
Contributed by Vladimir Cherkasov
The next JOIN improvement of our Xmas release is automatic join reordering.

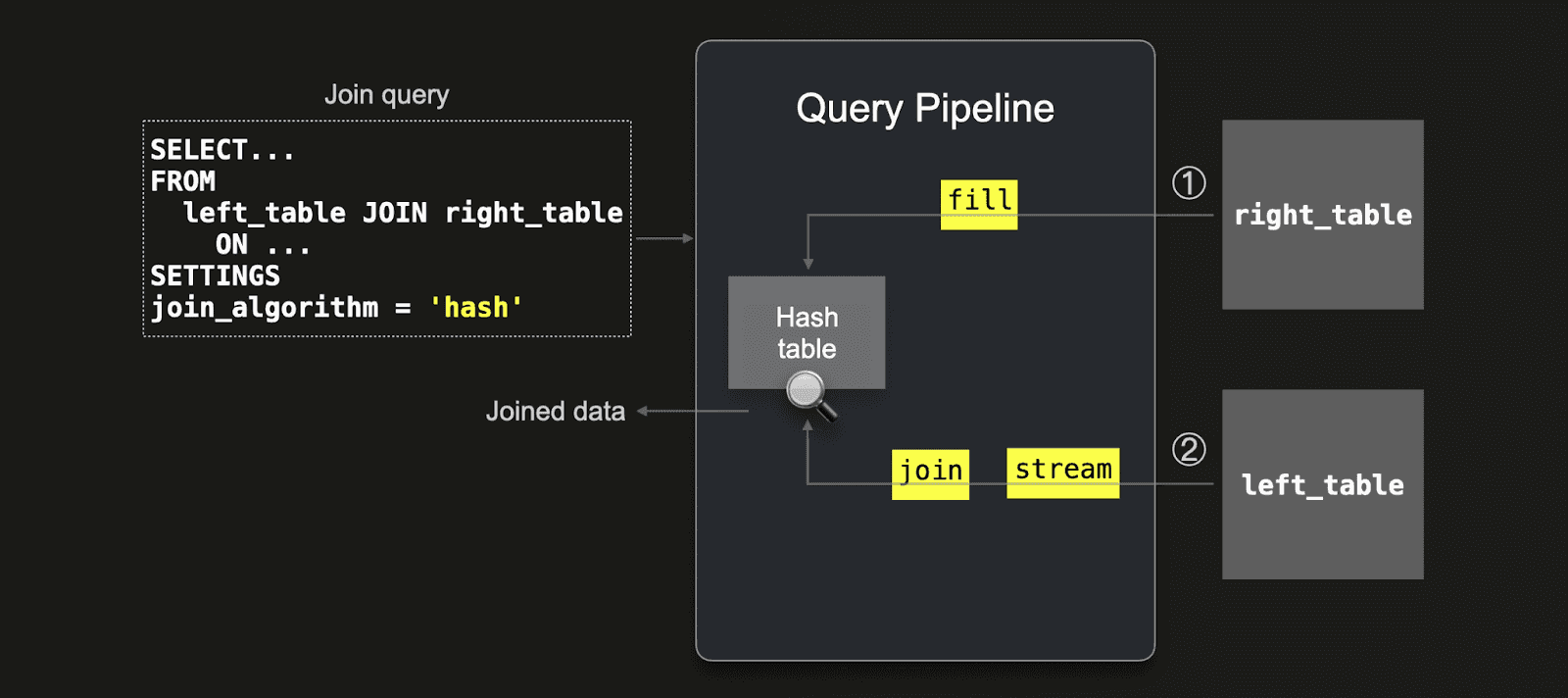

As a reminder, ClickHouse’s fastest join algorithms, like its new default algorithm, the parallel hash join, are based on in-memory hash tables and work by ① first loading the data from the right-hand side table of the join query into a hash table (this is also called the build phase), and ② then the data from the left-hand side table is streamed and joined by doing lookups into the hash table (this is called the scan phase):
Note that because ClickHouse takes the right-hand side table and creates a hash table with its data in RAM, placing the smaller table on the right-hand side of the JOIN is more memory efficient and often much faster.
Similarly, ClickHouse’s additional non-memory bound join algorithms based on external sorting, like the partial merge join, have a a build and a scan phase. For example, the partial merge join first builds a sorted version of the right table and then scans the left table. Therefore, placing the smaller table on the right-hand side of the JOIN is often much faster.
Instead of always using the right table of a join for the build phase, ClickHouse now has a new setting - query_plan_join_swap_table - to determine which side of the join should be the build table. Possible values are:
auto(the default value): In this mode, ClickHouse will try to choose the table with the smallest number of rows for the build phase. This is beneficial for almost every join query.false: Never swap tables (the right table is the build table).true: Always swap tables (the left table is the build table).
We will demonstrate the auto mode of the new query_plan_join_swap_table setting with another query over the TPC-H tables (see the previous section for instructions to create and load the tables, and info about the test hardware) where we join the lineitem and the part tables.
First, we check the size of these two tables:
SELECT
table,
formatReadableQuantity(sum(rows)) AS rows,
formatReadableSize(sum(bytes_on_disk)) AS size_on_disk
FROM system.parts
WHERE active AND (table IN ['lineitem', 'part'])
GROUP BY table
ORDER BY table ASC;
┌─table────┬─rows───────────┬─size_on_disk─┐
1. │ lineitem │ 600.04 million │ 26.69 GiB │
2. │ part │ 20.00 million │ 896.47 MiB │
└──────────┴────────────────┴──────────────┘
As you can see, the lineitem table is significantly larger than the part table.
The next query joins the lineitem and the part tables, and places the much larger lineitem table on the right side of the join:
1SELECT 100.00 * sum(
2 CASE
3 WHEN p_type LIKE 'PROMO%'
4 THEN l_extendedprice * (1 - l_discount)
5 ELSE 0 END) / sum(l_extendedprice * (1 - l_discount)) AS promo_revenue
6FROM part, lineitem
7WHERE l_partkey = p_partkey;
We run this query with the new query_plan_join_swap_table setting set to false, meaning that, as usual, the right table is the build table, and therefore ClickHouse first loads the data from the very large lineitem table into the main memory (in parallel into multiple hash tables as the parallel hash join is the default join algoirthm):
1SELECT 100.00 * sum(
2 CASE
3 WHEN p_type LIKE 'PROMO%'
4 THEN l_extendedprice * (1 - l_discount)
5 ELSE 0 END) / sum(l_extendedprice * (1 - l_discount)) AS promo_revenue
6FROM part, lineitem
7WHERE l_partkey = p_partkey
8SETTINGS query_plan_join_swap_table='false';
┌──────promo_revenue─┐
1. │ 16.650141208349083 │
└────────────────────┘
1 row in set. Elapsed: 55.687 sec. Processed 620.04 million rows, 12.67 GB (11.13 million rows/s., 227.57 MB/s.)
Peak memory usage: 24.39 GiB.
Next, we run the same query with the new query_plan_join_swap_table setting set to auto (the default value). Now ClickHouse will use estimations of the table sizes to determine which side of the join should be the build table. Therefore, ClickHouse first loads the data from the very much smaller part table into the main memory into hash tables before streaming and joining the data from the lineitem table:
1SELECT 100.00 * sum(
2 CASE
3 WHEN p_type LIKE 'PROMO%'
4 THEN l_extendedprice * (1 - l_discount)
5 ELSE 0 END) / sum(l_extendedprice * (1 - l_discount)) AS promo_revenue
6FROM part, lineitem
7WHERE l_partkey = p_partkey
8SETTINGS query_plan_join_swap_table='auto';
┌──────promo_revenue─┐
1. │ 16.650141208349083 │
└────────────────────┘
1 row in set. Elapsed: 9.447 sec. Processed 620.04 million rows, 12.67 GB (65.63 million rows/s., 1.34 GB/s.)
Peak memory usage: 4.72 GiB.
As you can see, the query runs over 5 times faster and uses 5 times less memory.
Optimization of JOIN expressions
Contributed by János Benjamin Antal
For joins with a chain of conditions, separated by ORs, like shown in this abstract example…
JOIN ... ON (a=b AND x) OR (a=b AND y) OR (a=b AND z)
… ClickHouse uses hash tables per condition (when one of the hash table-based join algorithms is used).
One way to reduce the number of hash tables and to allow better predicate push downs is to extract common expressions from ON clause of the example JOIN above:
JOIN ...ON a=b AND (x OR y OR z)
This behavior can be enabled by setting the new optimize_extract_common_expressions setting to 1. Because this setting is currently experimental, the default value is currently 0.
We demonstrate this new setting with another query over the TPC-H tables (see the previous section for instructions on creating and loading the tables, plus infos about the used hardware).
We run the following join query that has a chain of conditions, separated by ORs, with optimize_extract_common_expressions set to 0 (which disables the setting):
1SELECT
2 sum(l_extendedprice * (1 - l_discount)) AS revenue
3FROM
4 lineitem, part
5WHERE
6(
7 p_partkey = l_partkey
8 AND p_brand = 'Brand#12'
9 AND p_container in ('SM CASE', 'SM BOX','SM PACK', 'SM PKG')
10 AND l_quantity >= 1 AND l_quantity <= 1 + 10
11 AND p_size BETWEEN 1 AND 5
12 AND l_shipmode in ('AIR', 'AIR REG')
13 AND l_shipinstruct = 'DELIVER IN PERSON'
14)
15OR
16(
17 p_partkey = l_partkey
18 AND p_brand = 'Brand#23'
19 AND p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK')
20 AND l_quantity >= 10 AND l_quantity <= 10 + 10
21 AND p_size BETWEEN 1 AND 10
22 AND l_shipmode in ('AIR', 'AIR REG')
23 AND l_shipinstruct = 'DELIVER IN PERSON'
24)
25OR
26(
27 p_partkey = l_partkey
28 AND p_brand = 'Brand#34'
29 AND p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG')
30 AND l_quantity >= 20 AND l_quantity <= 20 + 10
31 AND p_size BETWEEN 1 AND 15
32 AND l_shipmode in ('AIR', 'AIR REG')
33 AND l_shipinstruct = 'DELIVER IN PERSON'
34)
35SETTINGS optimize_extract_common_expressions = 0;
On our test machine, this query had a progress of 3% after 30 minutes…so we aborted, and ran the same query with enabled optimize_extract_common_expressions setting:
1SELECT
2 sum(l_extendedprice * (1 - l_discount)) AS revenue
3FROM
4 lineitem, part
5WHERE
6(
7 p_partkey = l_partkey
8 AND p_brand = 'Brand#12'
9 AND p_container in ('SM CASE', 'SM BOX','SM PACK', 'SM PKG')
10 AND l_quantity >= 1 AND l_quantity <= 1 + 10
11 AND p_size BETWEEN 1 AND 5
12 AND l_shipmode in ('AIR', 'AIR REG')
13 AND l_shipinstruct = 'DELIVER IN PERSON'
14)
15OR
16(
17 p_partkey = l_partkey
18 AND p_brand = 'Brand#23'
19 AND p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK')
20 AND l_quantity >= 10 AND l_quantity <= 10 + 10
21 AND p_size BETWEEN 1 AND 10
22 AND l_shipmode in ('AIR', 'AIR REG')
23 AND l_shipinstruct = 'DELIVER IN PERSON'
24)
25OR
26(
27 p_partkey = l_partkey
28 AND p_brand = 'Brand#34'
29 AND p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG')
30 AND l_quantity >= 20 AND l_quantity <= 20 + 10
31 AND p_size BETWEEN 1 AND 15
32 AND l_shipmode in ('AIR', 'AIR REG')
33 AND l_shipinstruct = 'DELIVER IN PERSON'
34)
35SETTINGS optimize_extract_common_expressions = 1;
┌───────revenue─┐
1. │ 298937728.882 │ -- 298.94 million
└───────────────┘
1 row in set. Elapsed: 3.021 sec. Processed 620.04 million rows, 38.21 GB (205.24 million rows/s., 12.65 GB/s.)
Peak memory usage: 2.79 GiB.
Now the query returned its result in 3 seconds.
Non-equi JOINs supported by default
Contributed by Vladimir Cherkasov
Since version 24.05, ClickHouse had experimental support for non-equal conditions in the ON clause of JOIN:
-- Equi join
SELECT t1.*, t2.* FROM t1 JOIN t2 ON t1.key = t2.key;
-- Non-equi joins
SELECT t1.*, t2.* FROM t1 JOIN t2 ON t1.key != t2.key;
SELECT t1.*, t2.* FROM t1 JOIN t2 ON t1.key > t2.key
With the current release, this support is no longer experimental and enabled by default.
Stay tuned for the next releases this year that will bring, as promised, even more JOIN improvements!
