Extracting, Converting, and Querying Data in Local Files using clickhouse-local

author avatar
Denys Golotiuk
Jan 4, 2023


What is clickhouse-local?

Sometimes we have to work with files, like CSV or Parquet, resident locally on our computers, readily accessible in S3, or easily exportable from MySQL or Postgres databases. Wouldn’t it be nice to have a tool to analyze and transform the data in those files using the power of SQL, and all of the ClickHouse functions, but without having to deploy a whole database server or write custom Python code?

Fortunately, this is precisely why clickhouse-local was created! The name “local” indicates that it is designed and optimized for data analysis using the local compute resources on your laptop or workstation. In this blog post, we’ll give you an overview of the capabilities of clickhouse-local and how it can increase the productivity of data scientists and engineers working with data in these scenarios.

Installation

curl https://clickhouse.com/ | sh

Now we can use the tool:

./clickhouse local --version ClickHouse local version 22.13.1.530 (official build).

Quick example

Suppose we have a simple CSV file we want to query:

./clickhouse local -q "SELECT * FROM file(sample.csv) LIMIT 2"

This will print the first two rows from the given sample.csv file:

1 story pg 2006-10-09 21:21:51.000000000 2 story phyllis 2006-10-09 21:30:28.000000000 3 story phyllis 2006-10-09 21:40:33.000000000

The file() function, which is used to load data, takes a file path as the first argument and file format as an optional second argument.

Working with CSV files

Lets now introduce a more realistic dataset. A sample of the Hackernews dataset containing only posts concerning ClickHouse is available here for download. This CSV has a header row. In such cases, we can additionally pass the CSVWithNames format as a second argument to the file function:

./clickhouse local -q "SELECT id, type, time, by, url FROM file(hackernews.csv, CSVWithNames) LIMIT 5"

Note how we can now refer to columns by their names in this case:

18346787 comment 2018-10-31 15:56:39.000000000 RobAtticus 18355652 comment 2018-11-01 16:29:16.000000000 jeroensoeters 18362819 comment 2018-11-02 13:26:59.000000000 arespredator 21938521 comment 2020-01-02 19:01:23.000000000 lykr0n 21942826 story 2020-01-03 03:25:46.000000000 phatak-dev http://blog.madhukaraphatak.com/clickouse-clustering-spark-developer/

In cases where we are dealing with CSVs without a header row, we can simply use CSV format (or even omit, since Clickhouse can automatically detect formats):

./clickhouse local -q "SELECT * FROM file(hackernews.csv, CSV)"

In these cases, we can refer to specific columns using c and a column index (c1 for the first column, c2 for the second one, and so on). The column types are still automatically inferred from the data. To select the first and third columns:

./clickhouse local -q "SELECT c1, c3 FROM file(file.csv)"

Using SQL to query data from files

We can use any SQL query to fetch and transform data from files. Let’s query for the most popular linked domain in Hacker News posts:

./clickhouse local -q "SELECT id, type, time, by, url FROM file(hackernews.csv, CSVWithNames) LIMIT 1"

Note how we can now refer to columns by their names in this case:

┌─d─────────────────┬──t─┐ │ github.com │ 14 │ └───────────────────┴────┘

Or we can build the hourly distribution of posts to understand the most and least popular hours for posting:

./clickhouse local -q "SELECT toHour(time) h, count(*) t, bar(t, 0, 100, 25) as c FROM file(hackernews.csv, CSVWithNames) GROUP BY h ORDER BY h"

4pm seems to be the least popular hour to post:

┌──h─┬───t─┬─c─────────────────────────┐ │ 0 │ 38 │ █████████▌ │ │ 1 │ 36 │ █████████ │ │ 2 │ 29 │ ███████▏ │ │ 3 │ 41 │ ██████████▎ │ │ 4 │ 25 │ ██████▎ │ │ 5 │ 33 │ ████████▎ │ │ 6 │ 36 │ █████████ │ │ 7 │ 37 │ █████████▎ │ │ 8 │ 44 │ ███████████ │ │ 9 │ 38 │ █████████▌ │ │ 10 │ 43 │ ██████████▋ │ │ 11 │ 40 │ ██████████ │ │ 12 │ 32 │ ████████ │ │ 13 │ 59 │ ██████████████▋ │ │ 14 │ 56 │ ██████████████ │ │ 15 │ 68 │ █████████████████ │ │ 16 │ 70 │ █████████████████▌ │ │ 17 │ 92 │ ███████████████████████ │ │ 18 │ 95 │ ███████████████████████▋ │ │ 19 │ 102 │ █████████████████████████ │ │ 20 │ 75 │ ██████████████████▋ │ │ 21 │ 69 │ █████████████████▎ │ │ 22 │ 64 │ ████████████████ │ │ 23 │ 58 │ ██████████████▍ │ └────┴─────┴───────────────────────────┘

In order to understand file structure, we can use the DESCRIBE query:

./clickhouse local -q "DESCRIBE file(hackernews.csv, CSVWithNames)"

Which will print the columns with their types:

┌─name────────┬─type────────────────────┬ │ id │ Nullable(Int64) │ │ deleted │ Nullable(Int64) │ │ type │ Nullable(String) │ │ by │ Nullable(String) │ │ time │ Nullable(DateTime64(9)) │ │ text │ Nullable(String) │ │ dead │ Nullable(Int64) │ │ parent │ Nullable(Int64) │ │ poll │ Nullable(Int64) │ │ kids │ Array(Nullable(Int64)) │ │ url │ Nullable(String) │ │ score │ Nullable(Int64) │ │ title │ Nullable(String) │ │ parts │ Nullable(String) │ │ descendants │ Nullable(Int64) │ └─────────────┴─────────────────────────┴

Output formatting

By default, clickhouse-client will output everything in TSV format, but we can use any of many available output formats for this:

./clickhouse local -q "SELECT event, value FROM file(events.csv, CSVWithNames) WHERE value < 1e5 FORMAT SQLInsert"

This will output results in a standard SQL format, which can then be used to feed data to SQL databases, like MySQL or Postgres:

INSERT INTO table (`event`, `value`) VALUES ('click', 71364)...

Saving output to file

We can save the output to file by using the ‘INTO OUTFILE’ clause:

./clickhouse local -q "SELECT id, url, time FROM file(hackernews.csv, CSVWithNames) INTO OUTFILE 'urls.tsv'"

This will create a hn.tsvfile (TSV format):

clickhouse@clickhouse-mac ~% head urls.tsv 18346787 2018-10-31 15:56:39.000000000 18355652 2018-11-01 16:29:16.000000000 18362819 2018-11-02 13:26:59.000000000 21938521 2020-01-02 19:01:23.000000000 21942826 http://blog.madhukaraphatak.com/clickouse-clustering-spark-developer/ 2020-01-03 03:25:46.000000000 21953967 2020-01-04 09:56:48.000000000 21966741 2020-01-06 05:31:48.000000000 18404015 2018-11-08 02:44:50.000000000 18404089 2018-11-08 03:05:27.000000000 18404090 2018-11-08 03:06:14.000000000

Deleting data from CSV and other files

We can delete data from local files by combining query filtering and saving results to files. Let’s delete rows from the file hackernews.csv that have an empty url. To do this, we just need to filter the rows we want to keep and save the result to a new file:

./clickhouse local -q "SELECT * FROM file(hackernews.csv, CSVWithNames) WHERE url != '' INTO OUTFILE 'clean.csv'"

The new clean.csv file will not have empty url rows, and we can delete the original file once it’s not needed.

Converting between formats

As ClickHouse supports several dozen input and output formats (including CSV, TSV, Parquet, JSON, BSON, Mysql dump files, and many others), we can easily convert between formats. Let’s convert our hackernews.csv to Parquet format:

./clickhouse local -q "SELECT * FROM file(hackernews.csv, CSVWithNames) INTO OUTFILE 'hackernews.parquet' FORMAT Parquet"

And we can see this creates a new hackernews.parquet file:

clickhouse@clickhouse-mac ~% ls -lh hackernews* -rw-r--r-- 1 clickhouse clickhouse 826K 27 Sep 16:55 hackernews.csv -rw-r--r-- 1 clickhouse clickhouse 432K 4 Jan 16:27 hackernews.parquet

Note how Parquet format takes much less space than CSV. We can omit the FORMAT clause during conversions and Clickhouse will autodetect the format based on the file extensions. Let’s convert Parquet back to CSV:

./clickhouse local -q "SELECT * FROM file(hackernews.parquet) INTO OUTFILE 'hn.csv'"

Which will automatically generate a hn.csv CSV file:

clickhouse@clickhouse-mac ~% head -n 1 hn.csv 21942826,0,"story","phatak-dev","2020-01-03 03:25:46.000000","",0,0,0,"[]","http://blog.madhukaraphatak.com/clickouse-clustering-spark-developer/",1,"ClickHouse Clustering from Hadoop Perspective","[]",0

Working with multiple files

We often have to work with multiple files, potentially with the same or different structures.

Merging files of the same structure

Suppose we have several files of the same structure, and we want to load data from all of them to operate as a single table:


We can use a * to refer to all of the required files by a glob pattern:

./clickhouse local -q "SELECT count(*) FROM file('events-*.csv', CSV)"

This query will quickly count the number of rows across all matching CSV files. We can also specify multiple file names to load data:

./clickhouse local -q "SELECT count(*) FROM file('{first,other}.csv')"

This will count all rows from the first.csv and other.csv files.

Merging files of a different structure and format

We can also load data from files of different formats and structures, using a UNION clause:

./clickhouse local -q "SELECT * FROM ((SELECT c6 url, c3 by FROM file('first.csv')) UNION ALL (SELECT url, by FROM file('third.parquet'))) WHERE not empty(url)"

This query will quickly count the number of rows across all matching CSV files. We can also specify multiple file names to load data:

./clickhouse local -q "SELECT * FROM ((SELECT c6 url, c3 by FROM file('first.csv')) UNION ALL (SELECT url, by FROM file('third.parquet'))) WHERE not empty(url)"

We use c6 and c3 to reference the required columns in a first.csv file without headers. We then union this result with the data loaded from third.parquet.

Virtual _file and _path columns

When working with multiple files, we can access virtual _file and _path columns representing the relevant file name and full path, respectively. This can be useful, e.g., to calculate the number of rows in all referenced CSV files. This will print out the number of rows for each file:

clickhouse@clickhouse-mac ~ % ./clickhouse local -q "SELECT _file, count(*) FROM file('*.csv', CSVWithNames) GROUP BY _file FORMAT PrettyCompactMonoBlock" ┌─_file──────────┬─count()─┐ │ hackernews.csv │ 1280 │ │ sample.csv │ 4 │ │ clean.csv │ 127 │ │ other.csv │ 122 │ │ first.csv │ 24 │ └────────────────┴─────────┘

Joining data from multiple files

Sometimes, we have to join columns from one file on columns from another file, exactly like joining tables. We can easily do this with clickhouse-local.

Suppose we have a users.tsv (TSV format) file with full names in it:

./clickhouse local -q "SELECT * FROM file(users.tsv, TSVWithNames)" pg Elon Musk danw Bill Gates jwecker Jeff Bezos danielha Mark Zuckerberg python_kiss Some Guy

We have a username column in users.tsv which we want to join on with an by column in hackernews.csv:

./clickhouse local -q "SELECT u.full_name, h.text FROM file('hackernews.csv', CSVWithNames) h JOIN file('users.tsv', TSVWithNames) u ON (u.username = h.by) WHERE NOT empty(text) AND length(text) < 50"

This will print short messages with their authors' full names (data isn’t real):


Piping data into clickhouse-local

We can pipe data to clickhouse-local as well. In this case, we refer to the virtual table table that will have piped data stored in it:

./clickhouse local -q "SELECT * FROM table WHERE c1 = 'pg'" < users.tsv

In case we want to specify the data structure explicitly, so we use the --structure and --format arguments to select the columns and format to use respectively. In this case, Clickhouse will use the CSVWithNames input format and the provided structure:

./clickhouse local -q "SELECT * FROM table LIMIT 3" --input-format CSVWithNames --structure "id UInt32, type String" < unknown.file "id", "type" 1, "story" 2, "story" 3, "story"

We can also pipe any stream to clickhouse-local, e.g. directly from curl:

curl -s https://datasets-documentation.s3.amazonaws.com/hackernews/clickhouse_hacker_news.csv | ./clickhouse local --input-format CSVWithNames -q "SELECT id, url FROM table WHERE by = '3manuek' AND url != '' LIMIT 5 FORMAT PrettyCompactMonoBlock"

This will filter the piped stream on the fly and output results:

┌───────id─┬─url───────────────────────────────────────┐ │ 14703044 │ http://www.3manuek.com/redshiftclickhouse │ │ 14704954 │ http://www.3manuek.com/clickhousesample │ └──────────┴───────────────────────────────────────────┘

Working with files over HTTP and S3

clickhouse-local can work over HTTP using the url() function:

./clickhouse local -q "SELECT id, text, url FROM url('https://datasets-documentation.s3.amazonaws.com/hackernews/clickhouse_hacker_news.csv', CSVWithNames) WHERE by = '3manuek' LIMIT 5" 14703044 http://www.3manuek.com/redshiftclickhouse 14704954 http://www.3manuek.com/clickhousesample

We can also easily read files from S3 and pass credentials:

./clickhouse local -q "SELECT id, text, url FROM s3('https://datasets-documentation.s3.amazonaws.com/hackernews/clickhouse_hacker_news.csv', 'key', 'secret', CSVWithNames) WHERE by = '3manuek' LIMIT 5"

The s3() function also allows writing data, so we can transform local file data and put results right into an S3 bucket:

./clickhouse local -q "INSERT INTO TABLE FUNCTION s3('https://clickhousetests.s3.eu-central-1.amazonaws.com/hackernews.parquet', 'key', 'secret') SELECT * FROM file(hackernews.csv, CSVWithNames)"

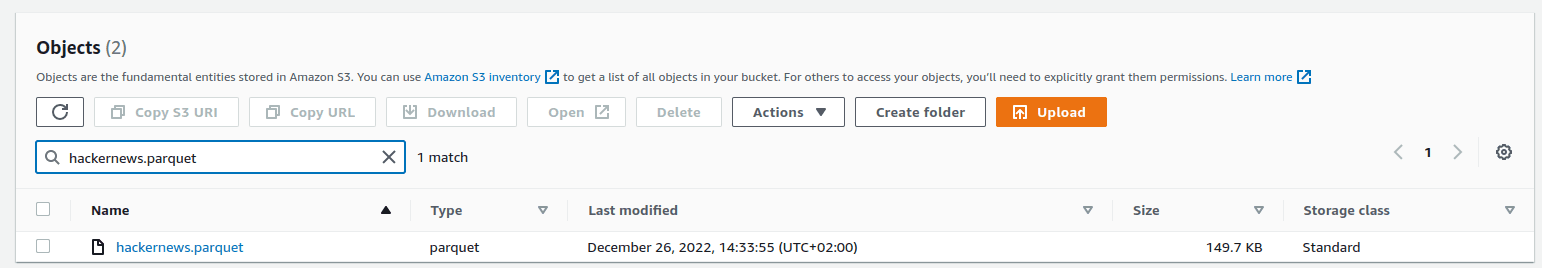

This will create a hackernews.parquet file in our S3 bucket:


Working with MySQL and Postgres tables

clickhouse-local inherits ClickHouse's ability to easily communicate with MySQL, Postgres, MongoDB, and many other external data sources via functions or table engines. While these databases have their own tools for exporting data, they cannot transform and convert to the same formats. For example, exporting data from MySQL directly to Parquet format using clickhouse-local is as simple as

clickhouse-local -q "SELECT * FROM mysql('127.0.0.1:3306', 'database', 'table', 'username', 'password') INTO OUTFILE 'test.pqt' FORMAT Parquet"

Working with large files

One common routine is to take a source file and prepare it for later steps in the data flow. This usually involves cleansing procedures which can be challenging when dealing with large files. clickhouse-local benefits from all of the same performance optimizations as ClickHouse, and our obsession with making things as fast as possible, so it is a perfect fit when working with large files.

In many cases, large text files come in a compressed form. clickhouse-local is capable of working with a number of compression formats. In most cases, clickhouse-local will detect compression automatically based on a given file extension:

You can download the file used in the examples below from here. This represents a larger subset of HackerNews post of around 4.6GB.

./clickhouse local -q "SELECT count(*) FROM file(hackernews.csv.gz, CSVWithNames)" 28737557

We can also specify compression type explicitly in cases file extension is unclear:

./clickhouse local -q "SELECT count(*) FROM file(hackernews.csv.gz, CSVWithNames,'auto', 'gzip')" 28737557

With this support, we can easily extract and transform data from large compressed files and save the output into a required format. We can also generate compressed files based on an extension e.g. below we use gz:

./clickhouse local -q "SELECT * FROM file(hackernews.csv.gz, CSVWithNames) WHERE by = 'pg' INTO OUTFILE 'filtered.csv.gz'" ls -lh filtered.csv.gz -rw-r--r-- 1 clickhouse clickhouse 1.3M 4 Jan 17:32 filtered.csv.gz

This will generate a compressed filtered.csv.gz file with the filtered data from hackernews.csv.gz.

Performance on large files

Let’s take our hackernews.csv.gz file from the previous section. Let’s execute some tests (done on a modest laptop with 8G RAM, SSD, and 4 cores):

QueryTime
./clickhouse local -q "SELECT count(*) FROM file(hn.csv.gz, CSVWithNames) WHERE by = 'pg'"
37 seconds
./clickhouse local -q "SELECT * FROM file(hn.csv.gz, CSVWithNames) WHERE by = 'pg' AND text LIKE '%elon%' AND text NOT LIKE '%tesla%' ORDER BY time DESC LIMIT 10"
33 seconds
./clickhouse local -q "SELECT by, AVG(score) s FROM file(hn.csv.gz, CSVWithNames) WHERE text LIKE '%clickhouse%' GROUP BY by ORDER BY s DESC LIMIT 10"
34 seconds

As we can see, results do not vary beyond 10%, and all queries take ~ 35 seconds to run. This is because most of the time is spent loading the data from the file, not executing the query. To understand the performance of each query, we should first load our large file into a temporary table and then query it. This can be done by using the interactive mode of clickhouse-local:

clickhouse@clickhouse-mac ~ % ./clickhouse local ClickHouse local version 22.13.1.160 (official build). clickhouse-mac :)

This will open a console in which we can execute SQL queries. First, let’s load our file into MergeTree table:

CREATE TABLE tmp ENGINE = MergeTree ORDER BY tuple() AS SELECT * FROM file('hackernews.csv.gz', CSVWithNames) 0 rows in set. Elapsed: 68.233 sec. Processed 20.30 million rows, 12.05 GB (297.50 thousand rows/s., 176.66 MB/s.)

We’ve used the CREATE…SELECT feature to create a table with structure and data based on a given SELECT query. Once the data is loaded, we can execute the same queries to check performance:

QueryTime
SELECT count(*) FROM tmp WHERE by = 'pg'
0.184 seconds
SELECT * FROM tmp WHERE by = 'pg' AND text LIKE '%elon%' AND text NOT LIKE '%tesla%' ORDER BY time DESC LIMIT 10
2.625 seconds
SELECT by, AVG(score) s FROM tmp WHERE text LIKE '%clickhouse%' GROUP BY by ORDER BY s DESC LIMIT 10
5.844 seconds

We could further improve the performance of queries by leveraging a relevant primary key. When we exit the clickhouse-local console (with exit; command) all created tables are automatically deleted:

clickhouse-mac :) exit Happy new year.

Generating files with random data for tests

Another benefit of using clickhouse-local, is that it has support for the same powerful random functions as ClickHouse. These can be used to generate close-to-real-world data for tests. Let’s generate CSV with 1 million records and multiple columns of different types:

./clickhouse local -q "SELECT number, now() - randUniform(1, 60*60*24), randBinomial(100, .7), randomPrintableASCII(10) FROM numbers(1000000) INTO OUTFILE 'test.csv' FORMAT CSV"

And in less than a second, we have a test.csv file that can be used for testing:

clickhouse@clickhouse-mac ~ % head test.csv 0,"2023-01-04 16:21:09",59,"h--BAEr#Uk" 1,"2023-01-04 03:23:09",68,"Z*}D+B$O {" 2,"2023-01-03 23:36:32",62,"$9}4_8u?1^" 3,"2023-01-04 10:15:53",62,"sN=h\K3'X/" 4,"2023-01-04 15:28:47",69,"l9gFX4J8qZ" 5,"2023-01-04 06:23:25",67,"UPm5,?.LU." 6,"2023-01-04 10:49:37",78,"Wxx\7m-UVG" 7,"2023-01-03 19:07:32",66,"sV/I9:MPLV" 8,"2023-01-03 23:25:08",66,"/%zy\|,9/^" 9,"2023-01-04 06:13:43",81,"3axy9 \M]E"

We can also use any available output formats to generate alternative file formats.

Loading data to a ClickHouse server

Using clickhouse-local we can prepare local files before ingesting them into production Clickhouse nodes. We can pipe the stream directly from clickhouse-local to clickhouse-client to ingest data into the table:

clickhouse-local -q "SELECT id, url, by, time FROM file(hn.csv.gz, CSVWithNames) WHERE not empty(url)" | clickhouse-client --host test.eu-central-1.aws.clickhouse.cloud --secure --port 9440 --password pwd -q "INSERT INTO hackernews FORMAT TSV"

In this example, we first filter the local hn.csv.gz file and then pipe the resulting output directly to the hackernews table on ClickHouse Cloud node.

Summary

When dealing with data in local or remote files, clickhouse-local is the perfect tool to get the full power of SQL without the need to deploy a database server on your local computer. It supports a wide variety of input and output formats, including CSV, Parquet, SQL, JSON, and BSON. It also supports the ability to run federated queries on various systems, including Postgres, MySQL, and MongoDB, and export data to local files for analysis. Finally, complex SQL queries can be easily executed on local files with the best-in-class performance of ClickHouse.
