Configuration Options

The following configuration options are available for each component of ClickStack:

Modifying settings

Docker

If using the All in One, HyperDX Only or Local Mode simply pass the desired setting via an environment variable e.g.

docker run  -e HYPERDX_LOG_LEVEL='debug' -p 8080:8080 -p 4317:4317 -p 4318:4318 docker.hyperdx.io/hyperdx/hyperdx-all-in-one

Docker Compose

If using the Docker Compose deployment guide, the .env file can be used to modify settings.

Alternatively, explicitly overwrite settings in the docker-compose.yaml file e.g.

Example:

services:
  app:
    environment:
      HYPERDX_API_KEY: ${HYPERDX_API_KEY}
      HYPERDX_LOG_LEVEL: ${HYPERDX_LOG_LEVEL}
      # ... other settings

Helm

Customizing values (optional)

You can customize settings by using --set flags e.g.

helm install my-hyperdx hyperdx/hdx-oss-v2 \
  --set replicaCount=2 \
  --set resources.limits.cpu=500m \
  --set resources.limits.memory=512Mi \
  --set resources.requests.cpu=250m \
  --set resources.requests.memory=256Mi \
  --set ingress.enabled=true \
  --set ingress.annotations."kubernetes\.io/ingress\.class"=nginx \
  --set ingress.hosts[0].host=hyperdx.example.com \
  --set ingress.hosts[0].paths[0].path=/ \
  --set ingress.hosts[0].paths[0].pathType=ImplementationSpecific \
  --set env[0].name=CLICKHOUSE_USER \
  --set env[0].value=abc

Alternatively edit the values.yaml. To retrieve the default values:

helm show values hyperdx/hdx-oss-v2 > values.yaml

Example config:

replicaCount: 2
resources:
  limits:
    cpu: 500m
    memory: 512Mi
  requests:
    cpu: 250m
    memory: 256Mi
ingress:
  enabled: true
  annotations:
    kubernetes.io/ingress.class: nginx
  hosts:
    - host: hyperdx.example.com
      paths:
        - path: /
          pathType: ImplementationSpecific
  env:
    - name: CLICKHOUSE_USER
      value: abc

HyperDX

Data source settings

HyperDX relies on the user defining a source for each of the Observability data types/pillars:

• Logs
• Traces
• Metrics
• Sessions

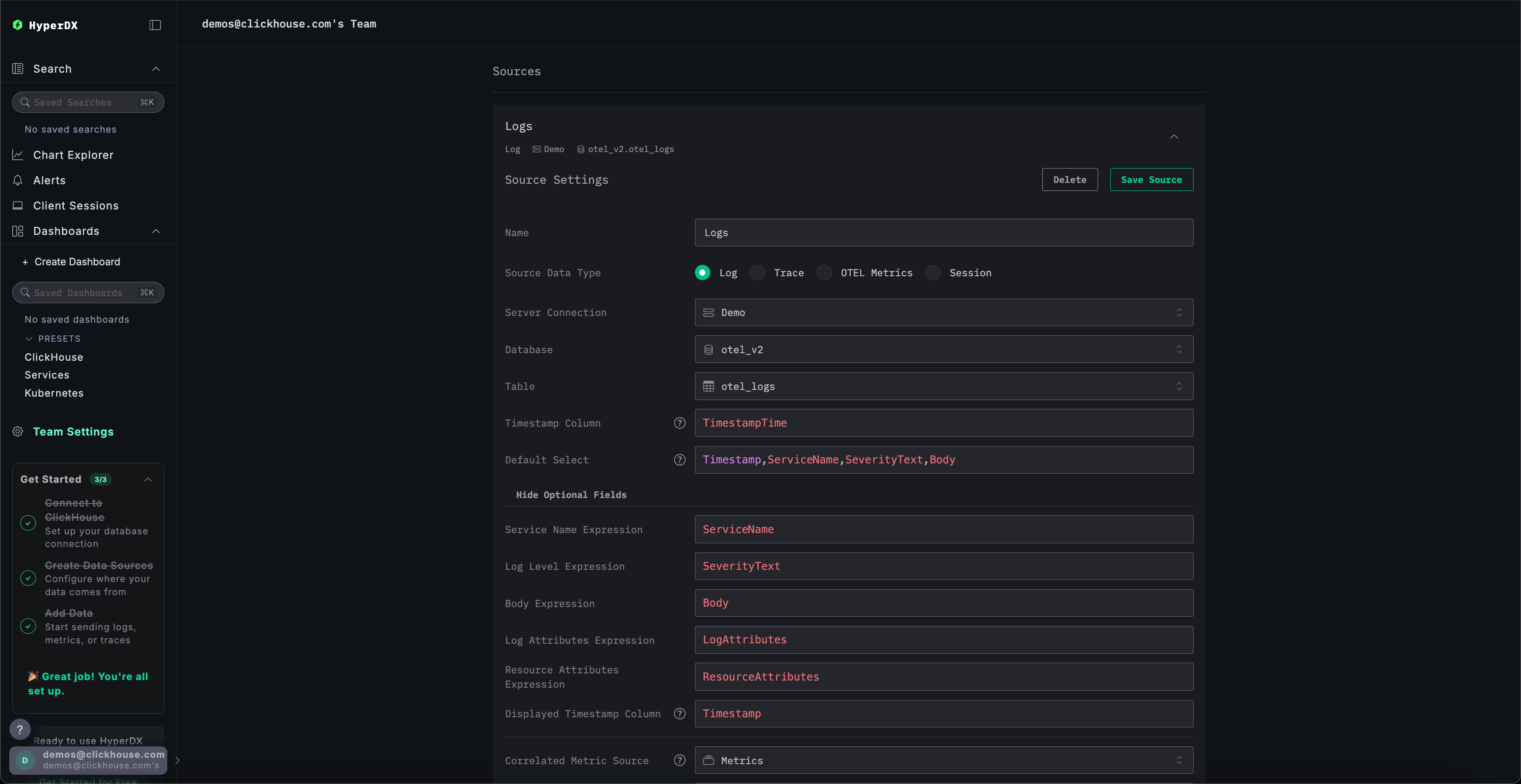

This configuration can be performed inside the application from Team Settings -> Sources, as shown below for logs:

Each of these sources require at least one table specified on creation as well as a set of columns which allow HyperDX to query the data.

If using the default OpenTelemetry (OTel) schema distributed with ClickStack, these columns can be automatically inferred for each of the sources. If modifying the schema or using a custom schema, users are required to specify and update these mappings.

注記

The default schema for ClickHouse distributed with ClickStack is the schema created by the ClickHouse exporter for the OTel collector. These column names correlate with the OTel official specification documented here.

The following settings are available for each source:

Logs

Setting	Description	Required	Inferred in Default Schema	Inferred Value
Name	Source name.	Yes	No	–
Server Connection	Server connection name.	Yes	No	Default
Database	ClickHouse database name.	Yes	Yes	default
Table	Target table name. Set to otel_logs if default schema is used.	Yes	No
Timestamp Column	Datetime column or expression that is part of your primary key.	Yes	Yes	TimestampTime
Default Select	Columns shown in default search results.	Yes	Yes	Timestamp, ServiceName, SeverityText, Body
Service Name Expression	Expression or column for the service name.	Yes	Yes	ServiceName
Log Level Expression	Expression or column for the log level.	Yes	Yes	SeverityText
Body Expression	Expression or column for the log message.	Yes	Yes	Body
Log Attributes Expression	Expression or column for custom log attributes.	Yes	Yes	LogAttributes
Resource Attributes Expression	Expression or column for resource-level attributes.	Yes	Yes	ResourceAttributes
Displayed Timestamp Column	Timestamp column used in UI display.	Yes	Yes	ResourceAttributes
Correlated Metric Source	Linked metric source (e.g. HyperDX metrics).	No	No	–
Correlated Trace Source	Linked trace source (e.g. HyperDX traces).	No	No	–
Trace Id Expression	Expression or column used to extract trace ID.	Yes	Yes	TraceId
Span Id Expression	Expression or column used to extract span ID.	Yes	Yes	SpanId
Implicit Column Expression	Column used for full-text search if no field is specified (Lucene-style). Typically the log body.	Yes	Yes	Body

Traces

Setting	Description	Required	Inferred in Default Schema	Inferred Value
Name	Source name.	Yes	No	–
Server Connection	Server connection name.	Yes	No	Default
Database	ClickHouse database name.	Yes	Yes	default
Table	Target table name. Set to otel_traces if using the default schema.	Yes	Yes	-
Timestamp Column	Datetime column or expression that is part of your primary key.	Yes	Yes	Timestamp
Timestamp	Alias for Timestamp Column.	Yes	Yes	Timestamp
Default Select	Columns shown in default search results.	Yes	Yes	Timestamp, ServiceName as service, StatusCode as level, round(Duration / 1e6) as duration, SpanName
Duration Expression	Expression for calculating span duration.	Yes	Yes	Duration
Duration Precision	Precision for the duration expression (e.g. nanoseconds, microseconds).	Yes	Yes	ns
Trace Id Expression	Expression or column for trace IDs.	Yes	Yes	TraceId
Span Id Expression	Expression or column for span IDs.	Yes	Yes	SpanId
Parent Span Id Expression	Expression or column for parent span IDs.	Yes	Yes	ParentSpanId
Span Name Expression	Expression or column for span names.	Yes	Yes	SpanName
Span Kind Expression	Expression or column for span kind (e.g. client, server).	Yes	Yes	SpanKind
Correlated Log Source	Optional. Linked log source (e.g. HyperDX logs).	No	No	–
Correlated Session Source	Optional. Linked session source.	No	No	–
Correlated Metric Source	Optional. Linked metric source (e.g. HyperDX metrics).	No	No	–
Status Code Expression	Expression for the span status code.	Yes	Yes	StatusCode
Status Message Expression	Expression for the span status message.	Yes	Yes	StatusMessage
Service Name Expression	Expression or column for the service name.	Yes	Yes	ServiceName
Resource Attributes Expression	Expression or column for resource-level attributes.	Yes	Yes	ResourceAttributes
Event Attributes Expression	Expression or column for event attributes.	Yes	Yes	SpanAttributes
Span Events Expression	Expression to extract span events. Typically a Nested type column. This allows rendering of exception stack traces with supported language SDKs.	Yes	Yes	Events
Implicit Column Expression	Column used for full-text search if no field is specified (Lucene-style). Typically the log body.	Yes	Yes	SpanName

Metrics

Setting	Description	Required	Inferred in Default Schema	Inferred Value
Name	Source name.	Yes	No	–
Server Connection	Server connection name.	Yes	No	Default
Database	ClickHouse database name.	Yes	Yes	default
Gauge Table	Table storing gauge-type metrics.	Yes	No	otel_metrics_gauge
Histogram Table	Table storing histogram-type metrics.	Yes	No	otel_metrics_histogram
Sum Table	Table storing sum-type (counter) metrics.	Yes	No	otel_metrics_sum
Correlated Log Source	Optional. Linked log source (e.g. HyperDX logs).	No	No	–

Sessions

Setting	Description	Required	Inferred in Default Schema	Inferred Value
Name	Source name.	Yes	No	–
Server Connection	Server connection name.	Yes	No	Default
Database	ClickHouse database name.	Yes	Yes	default
Table	Target table for session data. Target table name. Set to hyperdx_sessions if using the default schema.	Yes	Yes	-
Timestamp Column	Datetime column or expression that is part of your primary key.	Yes	Yes	TimestampTime
Log Attributes Expression	Expression for extracting log-level attributes from session data.	Yes	Yes	LogAttributes
LogAttributes	Alias or field reference used to store log attributes.	Yes	Yes	LogAttributes
Resource Attributes Expression	Expression for extracting resource-level metadata.	Yes	Yes	ResourceAttributes
Correlated Trace Source	Optional. Linked trace source for session correlation.	No	No	–
Implicit Column Expression	Column used for full-text search when no field is specified (e.g. Lucene-style query parsing).	Yes	Yes	Body

Correlated sources

To enable full cross-source correlation in ClickStack, users must configure correlated sources for logs, traces, metrics, and sessions. This allows HyperDX to associate related data and provide rich context when rendering events.

• Logs: Can be correlated with traces and metrics.
• Traces: Can be correlated with logs, sessions, and metrics.
• Metrics: Can be correlated with logs.
• Sessions: Can be correlated with traces.

By setting these correlations, HyperDX can, for example, render relevant logs alongside a trace or surface metric anomalies linked to a session. Proper configuration ensures a unified and contextual observability experience.

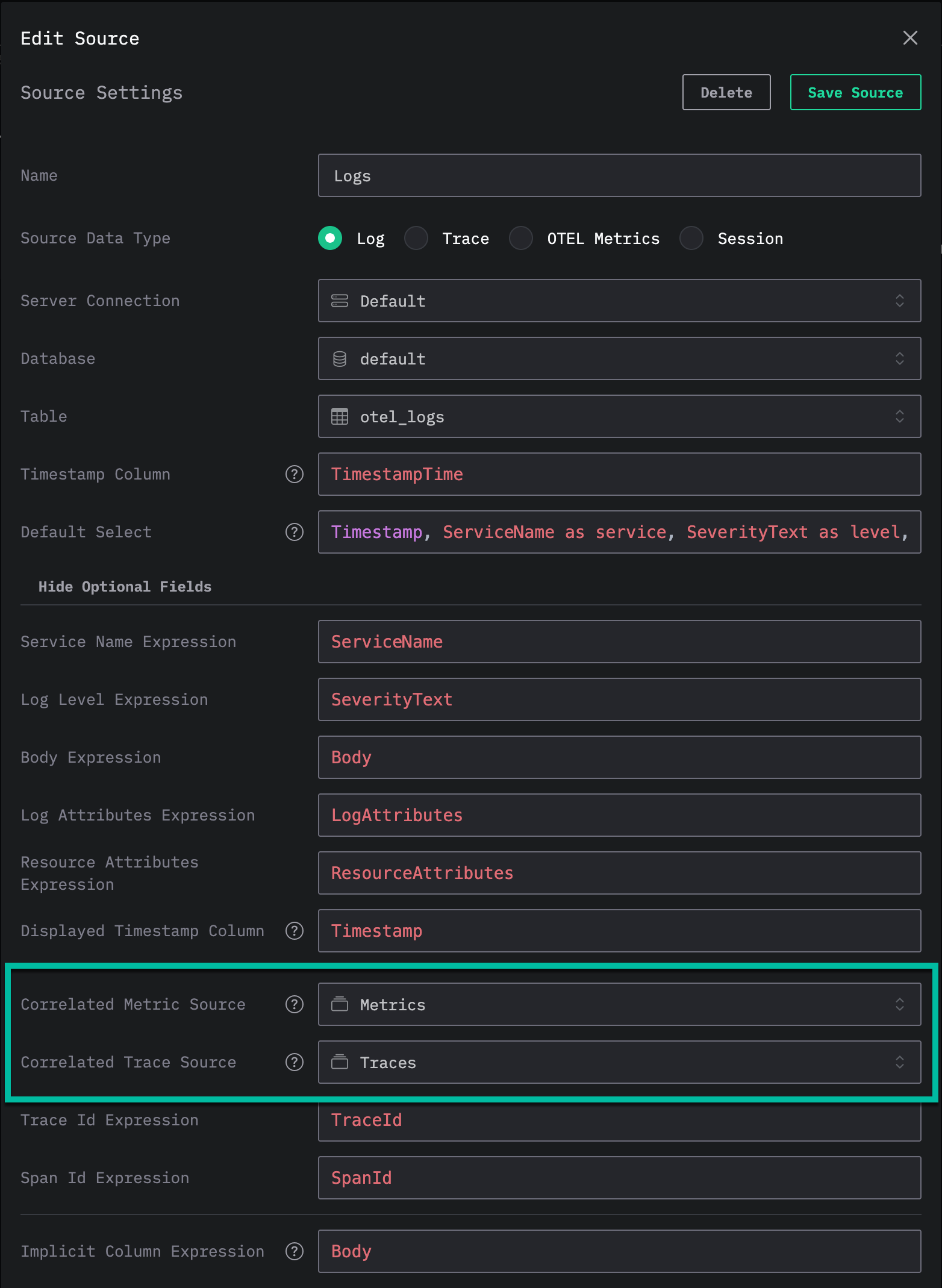

For example, below is the Logs source configured with correlated sources:

Application configuration settings

HyperDX in ClickHouse Cloud

These settings cannot be modified when HyperDX is managed in ClickHouse Cloud.

• HYPERDX_API_KEY

  • Default: None (required)
  • Description: Authentication key for the HyperDX API.
  • Guidance:
  • Required for telemetry and logging
  • In local development, can be any non-empty value
  • For production, use a secure, unique key
  • Can be obtained from the team settings page after account creation

• HYPERDX_LOG_LEVEL

  • Default: info
  • Description: Sets the logging verbosity level.
  • Options: debug, info, warn, error
  • Guidance:
  • Use debug for detailed troubleshooting
  • Use info for normal operation
  • Use warn or error in production to reduce log volume

• HYPERDX_API_PORT

  • Default: 8000
  • Description: Port for the HyperDX API server.
  • Guidance:
  • Ensure this port is available on your host
  • Change if you have port conflicts
  • Must match the port in your API client configurations

• HYPERDX_APP_PORT

  • Default: 8000
  • Description: Port for the HyperDX frontend app.
  • Guidance:
  • Ensure this port is available on your host
  • Change if you have port conflicts
  • Must be accessible from your browser

• HYPERDX_APP_URL

  • Default: http://localhost
  • Description: Base URL for the frontend app.
  • Guidance:
  • Set to your domain in production
  • Include protocol (http/https)
  • Don't include trailing slash

• MONGO_URI

  • Default: mongodb://db:27017/hyperdx
  • Description: MongoDB connection string.
  • Guidance:
  • Use default for local development with Docker
  • For production, use a secure connection string
  • Include authentication if required
  • Example: mongodb://user:pass@host:port/db

• MINER_API_URL

  • Default: http://miner:5123
  • Description: URL for the log pattern mining service.
  • Guidance:
  • Use default for local development with Docker
  • Set to your miner service URL in production
  • Must be accessible from the API service

• FRONTEND_URL

  • Default: http://localhost:3000
  • Description: URL for the frontend app.
  • Guidance:
  • Use default for local development
  • Set to your domain in production
  • Must be accessible from the API service

• OTEL_SERVICE_NAME

  • Default: hdx-oss-api
  • Description: Service name for OpenTelemetry instrumentation.
  • Guidance:
  • Use descriptive name for your HyperDX service. Applicable if HyperDX self-instruments.
  • Helps identify the HyperDX service in telemetry data

• NEXT_PUBLIC_OTEL_EXPORTER_OTLP_ENDPOINT

  • Default: http://localhost:4318
  • Description: OpenTelemetry collector endpoint.
  • Guidance:
  • Relevant of self-instrumenting HyperDX.
  • Use default for local development
  • Set to your collector URL in production
  • Must be accessible from your HyperDX service

• USAGE_STATS_ENABLED

  • Default: true
  • Description: Toggles usage statistics collection.
  • Guidance:
  • Set to false to disable usage tracking
  • Useful for privacy-sensitive deployments
  • Default is true for better product improvement

• IS_OSS

  • Default: true
  • Description: Indicates if running in OSS mode.
  • Guidance:
  • Keep as true for open-source deployments
  • Set to false for enterprise deployments
  • Affects feature availability

• IS_LOCAL_MODE

  • Default: false
  • Description: Indicates if running in local mode.
  • Guidance:
  • Set to true for local development
  • Disables certain production features
  • Useful for testing and development

• EXPRESS_SESSION_SECRET

  • Default: hyperdx is cool 👋
  • Description: Secret for Express session management.
  • Guidance:
  • Change in production
  • Use a strong, random string
  • Keep secret and secure

• ENABLE_SWAGGER

  • Default: false
  • Description: Toggles Swagger API documentation.
  • Guidance:
  • Set to true to enable API documentation
  • Useful for development and testing
  • Disable in production

• BETA_CH_OTEL_JSON_SCHEMA_ENABLED

  • Default: false
  • Description: Enables Beta support for the JSON type in HyperDX. See also OTEL_AGENT_FEATURE_GATE_ARG to enable JSON support in the OTel collector.
  • Guidance:
  • Set to true to enable JSON support in ClickStack.

OpenTelemetry collector

See "ClickStack OpenTelemetry Collector" for more details.

• CLICKHOUSE_ENDPOINT

  • Default: None (required) if standalone image. If All-in-one or Docker Compose distribution this is set to the integrated ClickHouse instance.
  • Description: The HTTPS URL of the ClickHouse instance to export telemetry data to.
  • Guidance:
    • Must be a full HTTPS endpoint including port (e.g., https://clickhouse.example.com:8443)
    • Required for the collector to send data to ClickHouse

• CLICKHOUSE_USER

  • Default: default
  • Description: Username used to authenticate with the ClickHouse instance.
  • Guidance:
    • Ensure the user has INSERT and CREATE TABLE permissions
    • Recommended to create a dedicated user for ingestion

• CLICKHOUSE_PASSWORD

  • Default: None (required if authentication is enabled)
  • Description: Password for the specified ClickHouse user.
  • Guidance:
    • Required if the user account has a password set
    • Store securely via secrets in production deployments

• HYPERDX_LOG_LEVEL

  • Default: info
  • Description: Log verbosity level for the collector.
  • Guidance:
    • Accepts values like debug, info, warn, error
    • Use debug during troubleshooting

• OPAMP_SERVER_URL

  • Default: None (required) if standalone image. If All-in-one or Docker Compose distribution this points to the deployed HyperDX instance.
  • Description: URL of the OpAMP server used to manage the collector (e.g., HyperDX instance). This is port 4320 by default.
  • Guidance:
    • Must point to your HyperDX instance
    • Enables dynamic configuration and secure ingestion

• HYPERDX_OTEL_EXPORTER_CLICKHOUSE_DATABASE

  • Default: default
  • Description: ClickHouse database the collector writes telemetry data to.
  • Guidance:
    • Set if using a custom database name
    • Ensure the specified user has access to this database

• OTEL_AGENT_FEATURE_GATE_ARG

  • Default: <empty string>
  • Description: Enables feature flags to enabled in the collector. If set to --feature-gates=clickhouse.json enables Beta support for the JSON type in collector, ensuring schemas are created with the type. See also BETA_CH_OTEL_JSON_SCHEMA_ENABLED to enable JSON support in HyperDX.
  • Guidance:
  • Set to true to enable JSON support in ClickStack.

ClickHouse

ClickStack ships with a default ClickHouse configuration designed for multi-terabyte scale, but users are free to modify and optimize it to suit their workload.

To tune ClickHouse effectively, users should understand key storage concepts such as parts, partitions, shards and replicas, as well as how merges occur at insert time. We recommend reviewing the fundamentals of primary indices, sparse secondary indices, and data skipping indices, along with techniques for managing data lifecycle e.g. using a TTL lifecycle.

ClickStack supports schema customization - users may modify column types, extract new fields (e.g. from logs), apply codecs and dictionaries, and accelerate queries using projections.

Additionally, materialized views can be used to transform or filter data during ingestion, provided that data is written to the source table of the view and the application reads from the target table.

For more details, refer to ClickHouse documentation on schema design, indexing strategies, and data management best practices - most of which apply directly to ClickStack deployments.
